Kora Pro 3D PC Printer
Benefits
✔ Faster, More Efficient Production
✔ Cost-Effective Manufacturing
✔ FREE UK Delivery!
Features
- Made in Britain
- PROBABLY the most personally 'hackable' production 3D Printer - IN THE WORLD today!

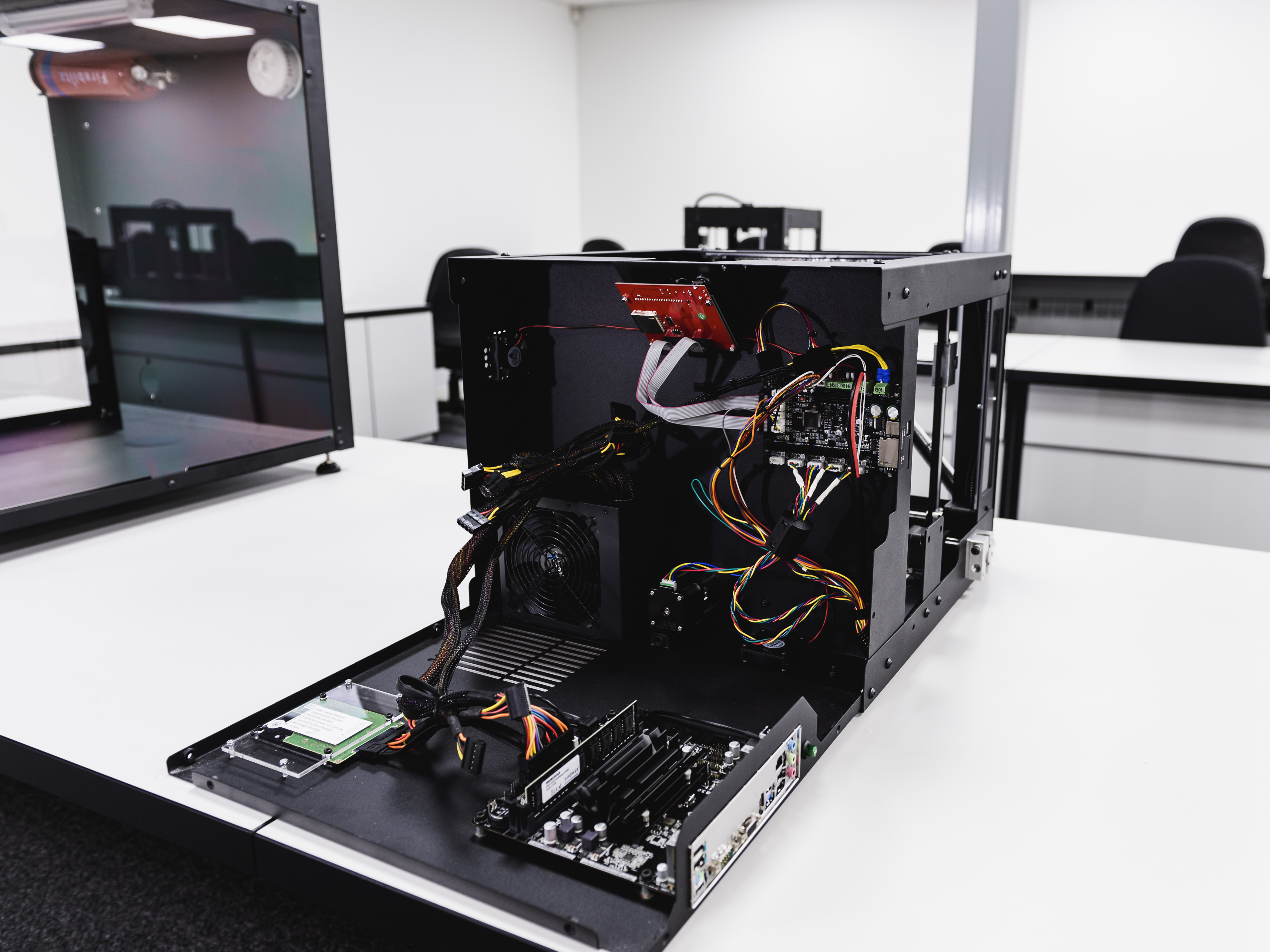

- Unique Fully Integrated and Upgradable iTX based PC Computer system
- Multiple Accessory Upgrades Possible by Utilising the power of the Integrated PC (Webcam, Networking, Remote Control, Remote Access etc.)
- Strong Steel Powder Coated Frame Construction
- Fully Heated Build Plate
- Inclined built-in 'High-Bright' Screen for clear control viewing
- On Board switchable LED Lighting System
- Easy Self Maintenance of ALL serviceable parts including hot-end, filament extruder etc.

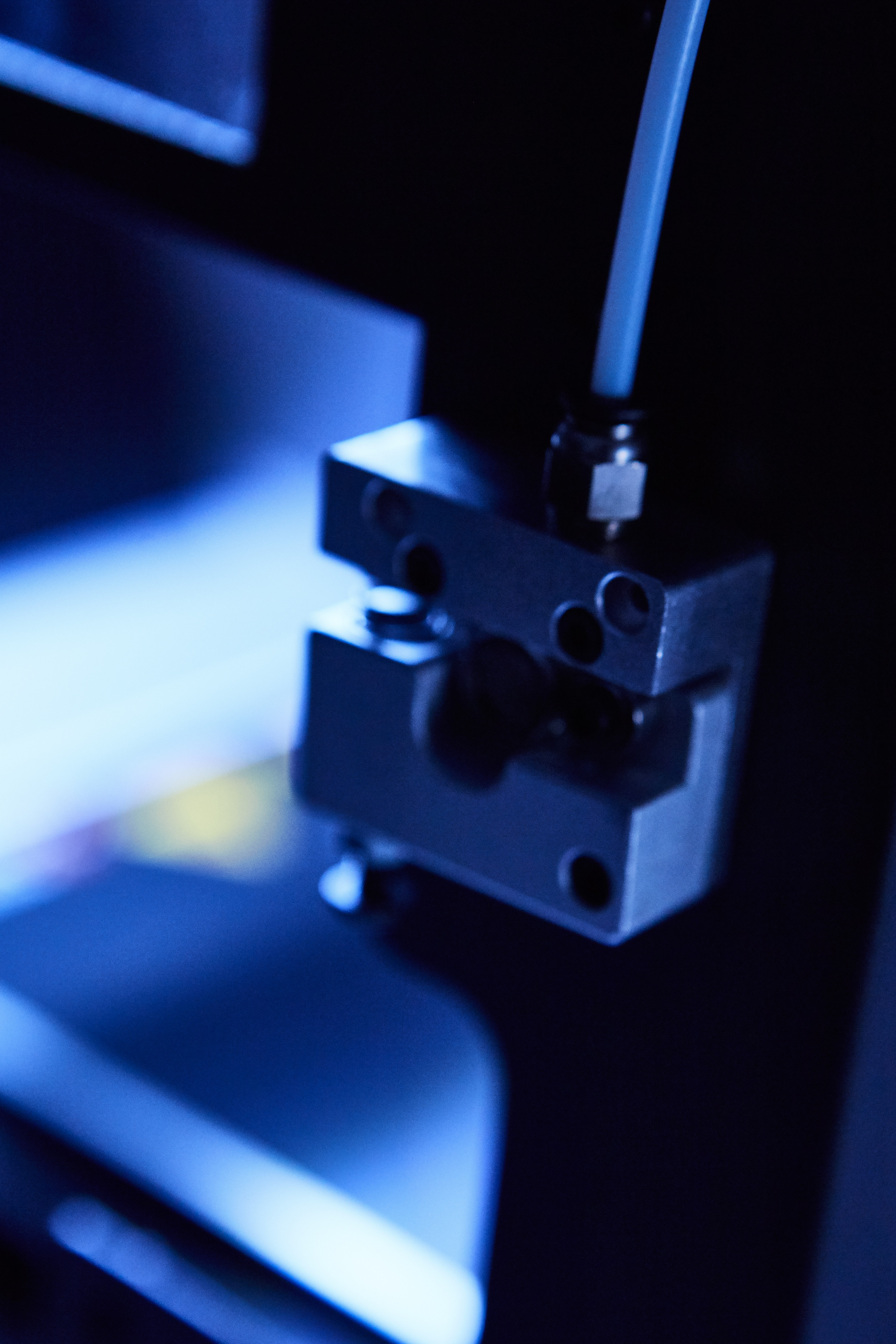

- Metal Gearbox Controlled Filament Extruder System for Maximum Power and Reliability
- All Aluminium CNC Bearing Holders, Hot End Carrier and Filament Extruder Mechanism
- Fully Built and Ready to 3D Print
Specification
Printer Properties
Technology Fused Filament Fabrication (FFF / FDM)

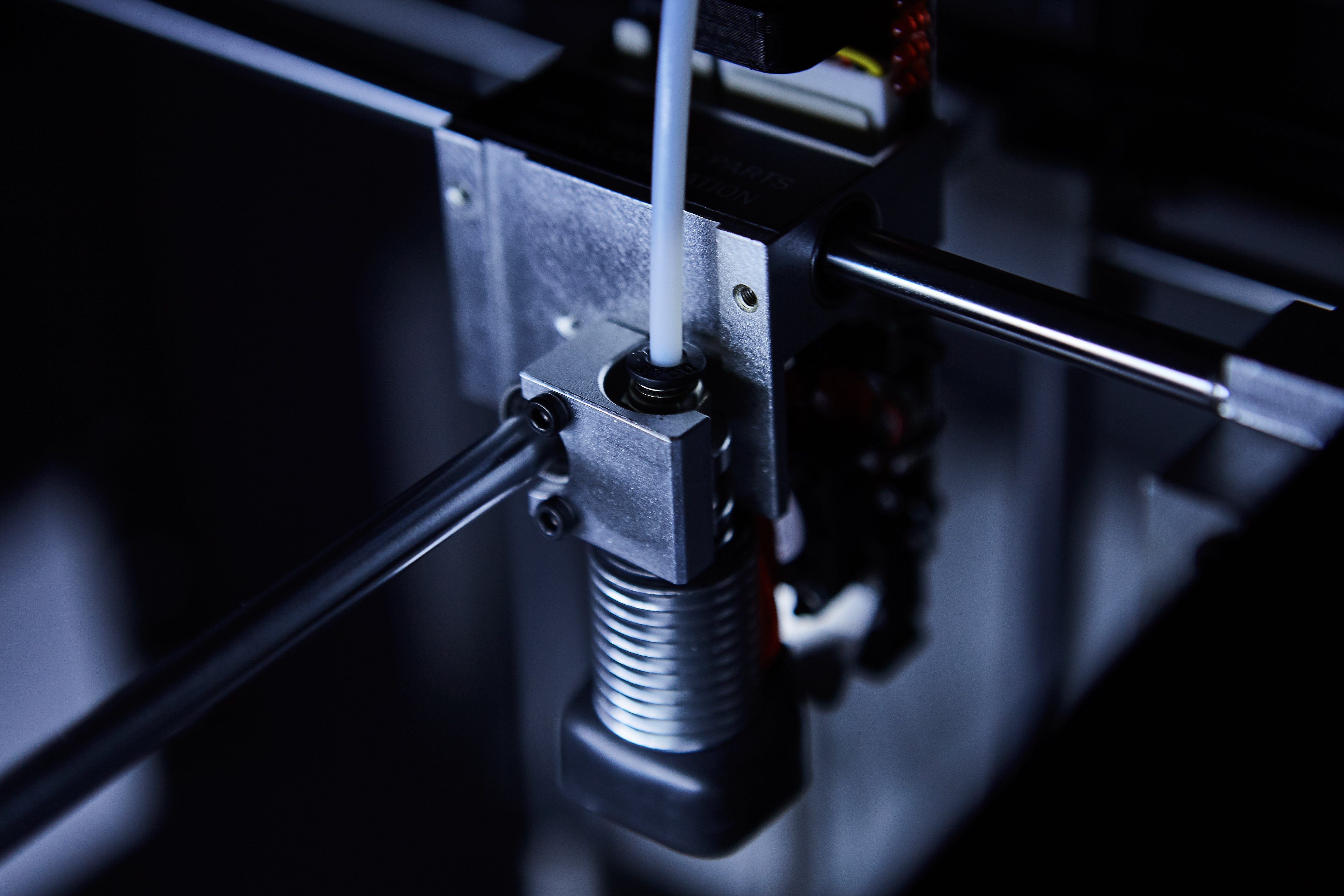

Print Head Style Metal Hot End Assembly (J Head Style)
Model Build Volume 200 x 200 x 200mm (8000cm3)
Filament Diameter 1.75mm
Layer Resolution 80 to 800 micron (0.08 to 0.8mm)
Nozzle Size Options (Standard = 0.4mm) 0.2, 0.3, 0.4, 0.5, 0.8, 1.0mm
Nozzle Head Travel Speed Max Recommended - 300 mm/second
Nozzle Head Temperature Range 170 - 260 Degrees Celsius

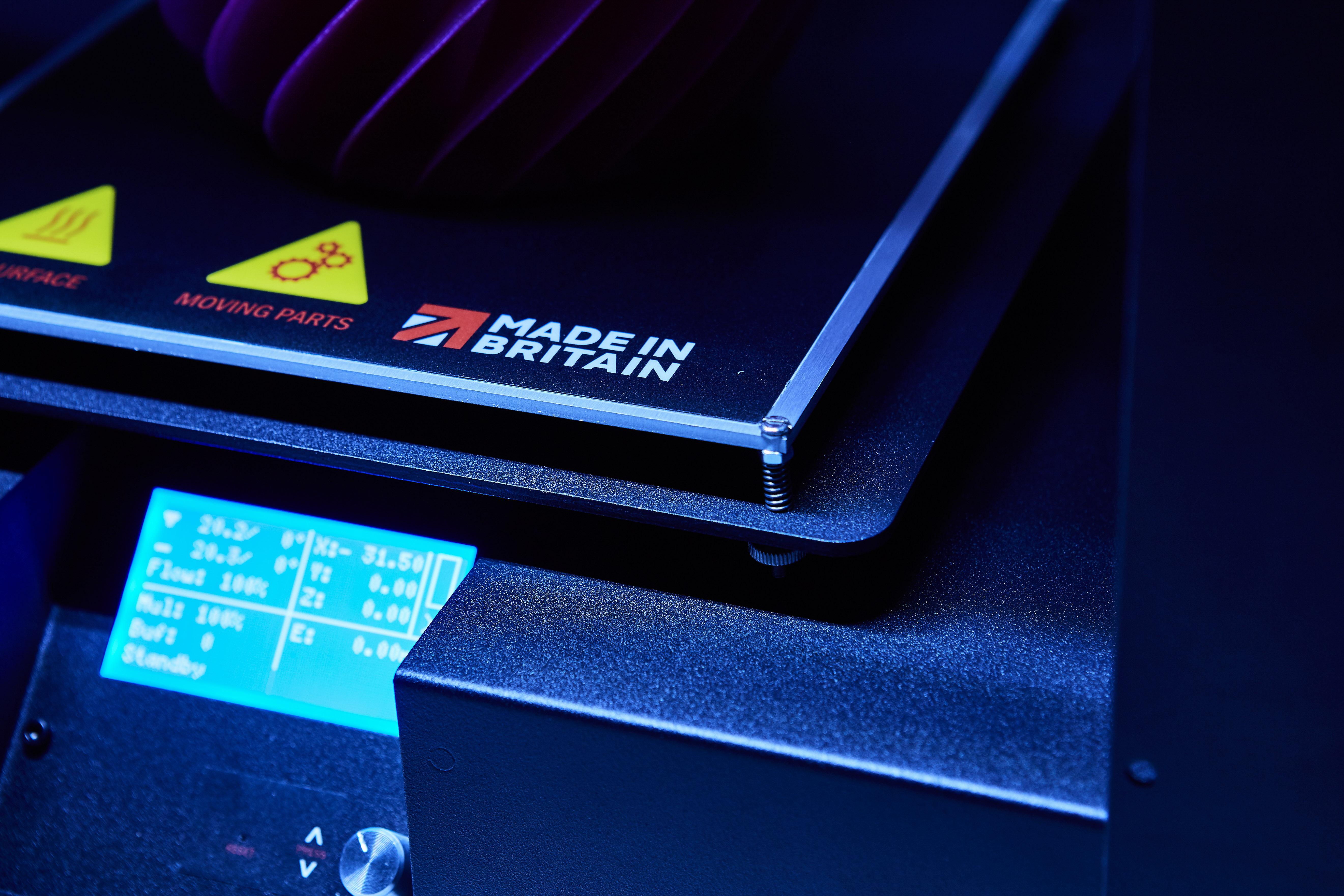

Build Plate Style Heated Aluminium with Filament Adhesion Pad
Build Plate Temperature Range 50 - 100 Degrees Celsius Max (Dependant on Ambient Room Temperature)
Supported Filament Types PLA, ABS, PETG (others not listed)
Frame Construction Textured Powder Coated Steel (1 - 3mm)
Connectivity

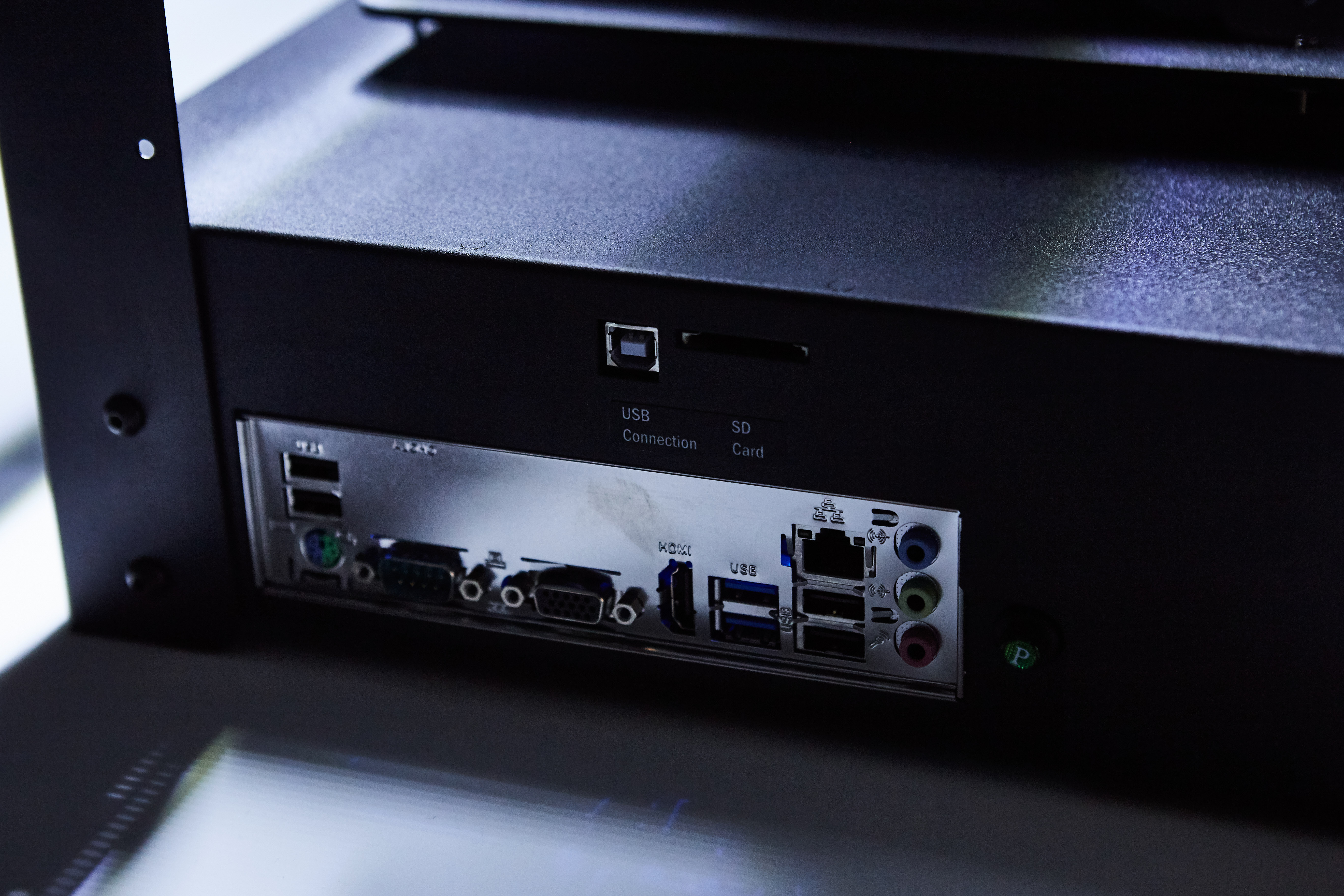

Stand Alone SD Card SD Card Slot on Machine Base
On Board USB to PC Connector USB to PC Connector on Machine Base
iTX PC Motherboard ASRock Mini iTX Form, User upgradable to m-ATX with Processor, Choice on User m-ATX Motherboard
Processor Type Std - AMD FT3 Kabini A4 Quadcore
Graphics AMD Radion 4K - VGA - HDMI HD8330
RAM Memory 8GB Standard (32GB Maximum) DDR3 1600
Communication Ports USB 3.0(2), Serial, D-Sub, HDMI, USB 2.0(8)
Audio System Realtek HD
LAN Realtek Gigabit LAN
Hard Disk Drive 500GB SATA Std, User upgradable to larger HDD or SSD Type
Main Power Supply 200/240v AC 4A In - 500 Watt - 3.3, 5, 12 volts DC Out - User upgradable re User Configuration
Physical Dimensions
Dimensions H450 x W435 x D370mm
Dimensions With Spool Holder and Umbilical Wire Fitted H550 x W535 x D370mm
Nett Weight 18Kg
Shipping Weight 19Kg
Shipping Box Dimensions H580 x W500 x D440mm Double Wall, Cardboard with Foam Inserts
Software
Recommended Software Package Repetier Host
Alternative Compatible Software Simplify3D, Cura, OctoPrint and others not listed
Onboard iTX PC Operating System Windows 10 Home
Firmware System Repetier Firmware (Open Source)
Firmware Uploading Software Arduino IDE
Supported File Types .STL, .OBJ, .GCO, .GCODE - others - see Chosen Software Specifications
- Made in Britain
- PROBABLY the most hackable production 3D Printer - IN THE WORLD today!
- Unique Fully Integrated and Upgradable iTX based PC Computer system
- Multiple Accessory Upgrades Possible by Utilising the power of the Integrated PC (Webcam, Networking, Remote Control, Remote Access etc.)
- Strong Steel Powder Coated Frame Construction
- Fully Heated Build Plate
- Inclined built-in 'High-Bright' Screen for clear control viewing
- On Board switchable LED Lighting System
- Easy Self Maintenance of ALL serviceable parts including hot-end, filament extruder etc.
- Metal Gearbox Controlled Filament Extruder System for Maximum Power and Reliability
- All Aluminium CNC Bearing Holders, Hot End Carrier and Filament Extruder Mechanism
- Easy change GT2 Belt system
- All Spare Parts Readily Available and Easy to Install
- Easy upgradable hot-end System for future proof technology upgrades
- Integrates with Most Third Party Open Source Software and Firmware
- Quality British engineering at its very best delivering advanced and affordable 3D printers
- All Kora Pro 3D printers leave our factory fully constructed and ready to use straight out of the box. High quality machined parts and circuit boards are designed to be easy for users to replace and/or upgrade in a matter of minutes
- All Kora Pro 3D Printers are professionally constructed - whilst open-source designed to be manipulated by enthusiasts and Advanced Users
- The Kora Pro 3D printing technology should be no more difficult to master than your average smart phone
- Power, speed, precision, efficiency and features combine to make the Kora Pro 3D Printer one of the best in its class
- The Kora Pro 3Ds VariBLOCK head unit allows for easy interchangeable and upgradable extruder head systems, allowing the machine to use various other materials as they become available on the market
- The machine is ideal for business, manufacturing, education, home use and people who want to design “Things” quickly and low cost
- The Kora Pro 3D Printer is fitted with a class beating, high heat retention Hot-End System
- Fully Built and Ready to 3D Print
- Fully Comparable and Compliant Safety Cabinet System (Available Separately)
